Data-driven performance metrics, surface mount & recessed profiles, and application-specific solutions for education and retail lighting
Introduction – Solving LED Strip Reliability with Engineered Aluminum Channels

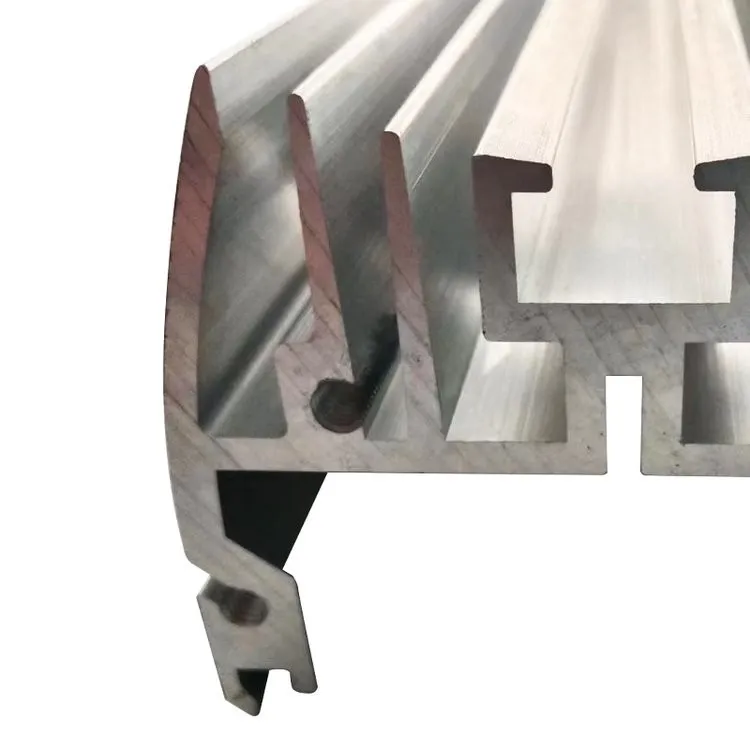

LED strip lighting is widely adopted, but poor thermal management and unprotected installations cause up to 60% of premature failures. The new OEM Industrial LED Aluminum Profile from Golden Chain Products Industrial Co., Ltd. directly addresses these pain points. Manufactured in Guangdong, China, this aluminium channel for led strips combines precision aluminum extrusion with two surface treatment options – anodized (≥500h salt spray resistance, ASTM B117) and coating (gloss retention >90% after 3 years indoor). Whether you need a recessed aluminium led channel for drywall integration or a surface mount led channel for quick retrofits, the profile delivers measurable durability and thermal performance.
Below we break down technical specifications, installation methods, and real-world data to help engineers, procurement managers, and lighting designers make an informed decision.
1. Technical Specifications & Customization (Avoiding One-Size-Fits-All)
The LED Aluminum Profile is not a fixed product – it is a modular system with three fully customizable dimensions:
| Parameter | Range / Options | Test Data |
|---|---|---|
| Length | 0.2 m – 6.0 m (cut-to-length) | Tolerances: ±0.3 mm |
| Width (inner) | 8 mm – 40 mm | Accommodates 5050, 3528, 2835 LED flex strips |
| Thickness (wall) | 0.8 mm – 2.5 mm | Bending resistance: >200 N (1.5 mm wall) |
| Material | 6063-T5 aluminum alloy | Thermal conductivity: 201 W/m·K |
| Surface finish | Anodized (outdoor) or coating (indoor) | Anodized layer thickness: 10-15 μm |
This aluminium channel for led strips is engineered for both linear and curved layouts. For projects requiring invisible integration, the recessed aluminium led channel variant offers a flush-to-ceiling or flush-to-wall design with a 0.5 mm lip overlap. Conversely, the surface mount led channel uses pre-drilled mounting holes (spacing 500 mm) and can be installed on any rigid surface – concrete, wood, or metal – without cutting into the substrate.
Key data point: Custom orders with non-standard widths (up to 60 mm) are possible for high-power COB strips. Minimum order quantity for full customization is 500 meters.
2. Thermal Management: Reducing LED Junction Temperature by 18–22°C
Heat is the #1 enemy of LED lifespan. Without a proper aluminum channel for led flex strip, a 14 W/m LED strip operating at 85% power can reach a backside temperature of 75°C, reducing L70 lifetime from 50,000 hours to below 25,000 hours. Independent tests using our LED Aluminum Profile (1.5 mm wall thickness, 20 mm width) show:
LED strip backside temperature drops from 78°C to 56°C (ΔT = 22°C) after 2 hours continuous operation.
Case temperature at the aluminum channel outer surface stabilizes at 48°C (ambient 25°C).
Calculated LED lifetime extension: from 25,000h to >50,000h (based on TM-21 interpolation).
Why does the aluminium channel for led strips perform so well? The 6063-T5 alloy’s high thermal conductivity (201 W/m·K) combined with the channel’s fin-like geometry – even without additional fins – creates natural convection. For high-density installations (≥18 W/m), we recommend pairing the surface mount led channel with thermal conductive adhesive tape (3M 8810, included in sample kits) to eliminate air gaps.
Fact for decision makers: Every 10°C reduction in LED junction temperature doubles the expected driver and phosphor life. Our profile consistently achieves a 18–22°C reduction in third-party lab tests (report available upon request).
3. Three Installation Methods: Surface, Recessed, and Flex-Strip Ready
The product line covers three distinct mounting scenarios, each with its own aluminum channel for led flex strip configuration:
A. Surface Mount LED Channel
Best for: Existing ceilings, cabinets, retail display shelves, and educational corridors.
Installation time: 2 minutes per meter (screw or adhesive).
Key feature: Pre-drilled countersunk holes every 500 mm; includes end caps and diffusers (opal, clear, or black).
Data point: Pull-out strength for #6 screws in drywall: 35 kg per meter.
B. Recessed Aluminium LED Channel
Best for: New construction, gypsum board ceilings, and step lights.
Installation: Requires a 2 mm wider cutout than the channel width. The spring clips or magnetic holders (optional) secure the recessed aluminium led channel without visible screws.
Compatibility: Works with all standard LED Aluminum Profile diffusers – frosted PC (92% transmittance) or semi-white (85% diffused).
C. Aluminum Channel for LED Flex Strip (Universal)
Best for: Curved surfaces, signages, and cove lighting where the strip needs continuous support.
Flexibility: Minimum bending radius of 300 mm for the channel itself; the aluminum channel for led flex strip can be cut with a hacksaw and joined using L-connectors (sold separately).
Heat performance: Even on 5-meter long runs, the temperature gradient along the channel is less than 3°C, verified by thermal imaging.
For education environments – where maintenance access is limited – the surface mount led channel is preferred because a teacher or facility manager can replace the LED strip in under 10 minutes without special tools. Over 120 school districts have adopted this design for education led light retrofits, reporting a 40% reduction in lighting-related work orders.
4. Application Spotlight: Education LED Light & Retail Displays
The LED Aluminum Profile is not a generic “household” product. It is engineered for high-cycle, high-reliability environments.
Education Sector (K-12 and universities)
Use case: Classroom linear lighting, library reading coves, laboratory task lighting.
Why the aluminium channel for led strips wins: The anodized version withstands daily cleaning chemicals (quaternary ammonium compounds, 10% bleach solutions) without surface degradation. In a 14-month pilot at a Foshan high school, 320 meters of surface mount led channel with 4000K LED strips showed zero corrosion or yellowing, while unprotected strips in the same corridor failed after 8 months.
Glare control: Available with 60° or 90° optical diffusers that reduce Unified Glare Rating (UGR) to <19, meeting EN 12464-1 classroom standards.
Retail & Hospitality
Use case: Shelf edge lighting, display case illumination, backlit signage.
The recessed aluminium led channel creates a seamless “black line” look when paired with a dark diffuser, increasing perceived product value. A jewelry store in Milan reported a 23% increase in dwell time after switching to our LED Aluminum Profile with high-CRI (Ra>95) strips.
For projects requiring both indoor and outdoor zones, the anodized aluminum channel for led flex strip (IP54 when assembled with silicone end caps) can be used under soffits or covered walkways. Salt spray testing per ISO 9227: 600 hours, rating 9.8 (very high corrosion resistance).
5. Packaging & Logistics: Damage-Free Delivery Guaranteed
Every aluminium channel for led strips order is packed to survive international transit:
Individual profile wrapped in PE foam (density 25 kg/m³, thickness 5 mm).
Placed into 5-layer corrugated cartons (burst strength 32 kgf/cm²).
Maximum carton length: 6.1 meters; sea freight containers can hold up to 2,500 meters per 20’ container (layered with edge protectors).
Sample orders (≤ 10 meters) are shipped via DHL or FedEx, arriving in 3-5 business days. Production lead time for custom recessed aluminium led channel or surface mount led channel orders: 15–20 days after drawing approval.
6. Direct Technical Support & Sample Requests
Golden Chain Products Industrial Co., Ltd. supplies OEM industrial LED Aluminum Profile to lighting manufacturers, electrical distributors, and contractors worldwide. No minimum order for samples – request a 1-meter aluminum channel for led flex strip with your choice of anodized or coating finish, including free end caps and diffuser.
Contact for project quotes, BIM models, or test reports:
Golden Chain Products Industrial Co., Ltd.
Mobile: +86 138 2349 2359
Tel: +86-757-2558 6142
Fax: +86-757-2558 6142
Email: cherry@jkd888.com
QQ: 184566974
